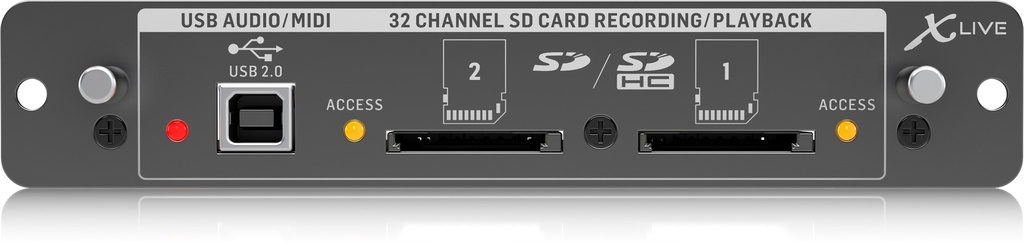

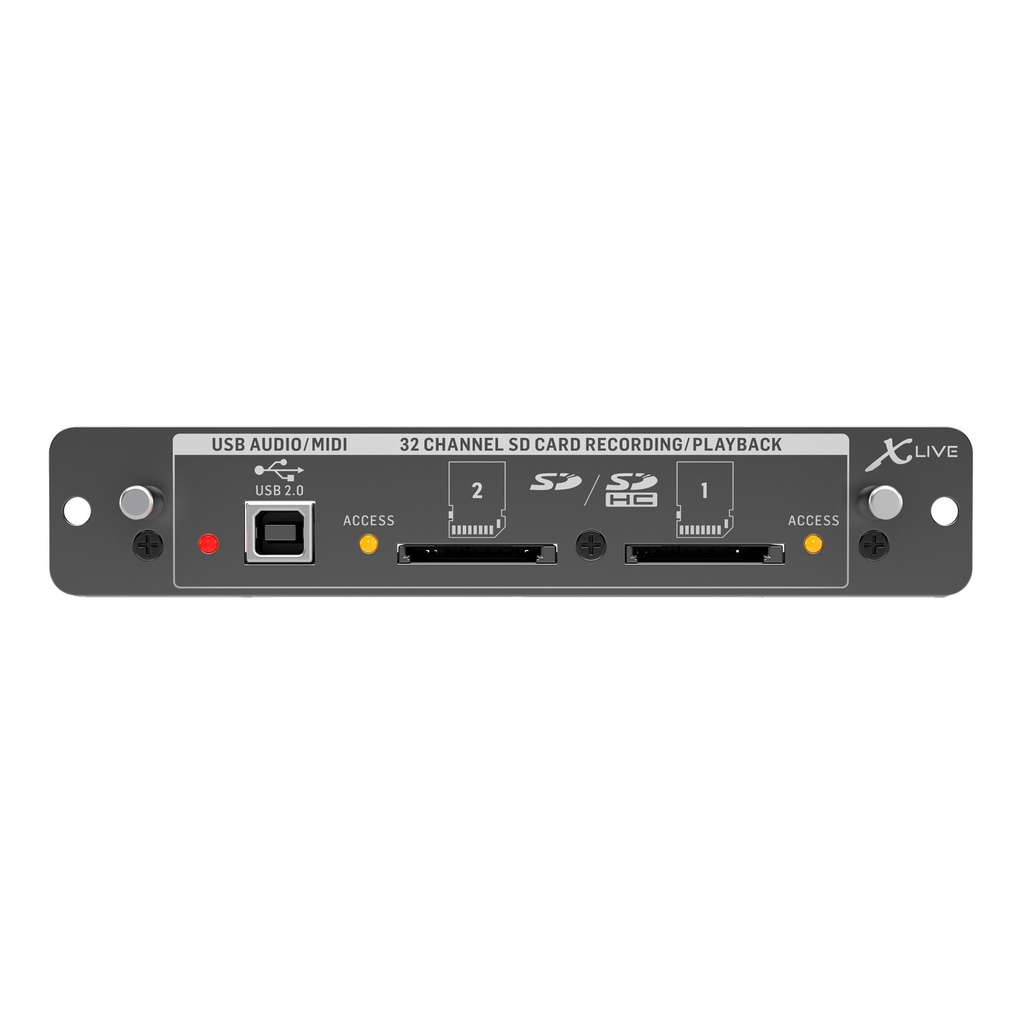

Behringer X-LIVE 32 Ch SD Recording/Playback & USB Expansion card for X32
The X-LIVE interface card expands on the already stellar performance of the X-USB card that has been standard in X32 consoles for years. The same 32-channel bi-directional audio I/O via USB 2.0 is available, providing 32 channels for recording and playback, plus remote operation of your DAW via HUI/Mackie Control emulation. The addition of dual SD/SDHC slots provides fully independent recording and playback of up to 32 channels of uncompressed WAV files in consistent sessions – up to the maximum capacity of the SD cards. Multi-channel recording without a laptop, as well as virtual sound checks, live backing-track support, accurate marker handling and manipulation, and full remote operation from PC, Android * or iPad * apps and X-TOUCH control surfaces. All of this barely begins to scratch the surface of what X-LIVE can bring to your X32.
FEATURES
32-channel live recording and playback on dual SD/SDHC cards
Up to 3 hours of 48 kHz/32-bit PCM recording of 32 channels in one session, stored as uncompressed WAV files
32-channel, bi-directional USB 2.0 audio/MIDI interface for studio and live recording
Independent operation of SD cards and USB recording / playback
Remote control via PC, Android or iPad apps, assignable controls or compatible hardware control surfaces, such as the Behringer X-TOUCH
Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time
Unique sample-synchronized automatic spanning feature allows extending a session across both SD cards for more than 12 hours of 8-track recording time non-stop
Instantaneous live playback with preload and markers in the console UI and remote apps
Markers can be set on the fly for identifying song positions while recording or playing back
All markers can be edited directly in the console GUI
Allows employing PC "Plug Ins" for outboard effects processing via USB
Channel routing can be stored and automated for record/playback
Secure file handling in the event of power blackout (optional CR123A Lithium cell required)
HUI/Mackie Control emulation for controlling of any compatible DAW software from the console surface
Compatible with CoreAudio on Mac OSX- ultra-low latency ASIO drivers for Windows PC available
